Laundry Ironing Belts are used on commercial ironer or laundry industrial ironer, they are working on the ironer heating part, so strict on the belts working on the ironer which can resist the high temperature, normally steam ironer use woven ironer belts, Gas and Oil heating ironer use 50%nomex/50%polyester ironing belts or 100%nomex belts, Hongkong Xinyun can offer those all ironing belts.
Hongkong Xinyun's laundry ironer belts are good heat resistance and durable, we can produce every kind of ironing belts which has different materials, thickness and width, those with a good dimensional stability and suitable for all kinds of flatwork rotary ironing machine. We have four types of ironing belt, and the customer can choose them depend on different craft, types of ironing machine and working temperature.

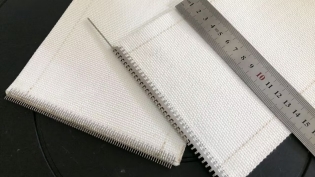

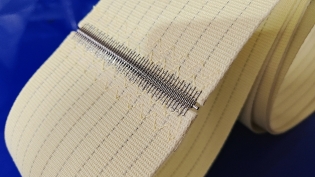

All ironing belts can be made to ready belt with hooks, nomex cover and pins, or supplying in roll .Other special requirements and size can be customized. And in order to support our customers to make ready-made belts locally, we supply ironer belt fastener machine, belt fastener hooks, nomex cover belt cutting devices and pins to join the hooks.

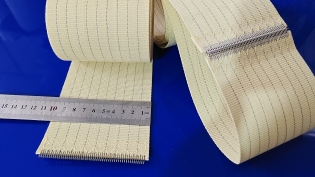

L-021 Needle Type of 100% Nomex（Meta Aramid）Ironer Belt, there are thickness 2mm and 4mm, 100% Nomex ironer belt could resist high working temperature 240 ℃. T
hickness of 2mm nomex belt can replaces and outperforms the traditional (brown) chicago belt. Advantage: high air permeability.
L-022 Nomex Polyester Ironer Belt is combined by 50% nomex (meta aramid) and 50% polyester, 100% nomex fabric for the base cloth, and 100% nomex top be a very smooth surface which have better stability and longer lifespan. Aramid polyester ironer belt can be working in 220 ℃ temperature, it is used on gas flatwork ironer or electricity heater flatwork ironer.
L-023 Chicago 100% Nomex Ironer Belt(aramid ironer belt), brown color woven type, Specifically for Chicago ironing machine.

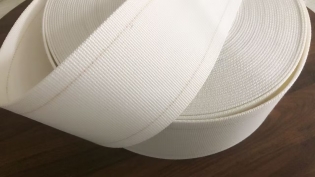

L-024 Woven Polyester Ironing Belt(canvas belt), especially used on Chinese made steam heating laundry ironer machine.
L-025 Aramid / Kevlar Ironing Belt for High-Speed Ironer Machine
Aramid woven belt is specifically designed for use with high-speed ironing machines made in China.
Aramid ironer belt is woven from 100% Kevlar and anti-static yarn by special heat treatment and high-temperature setting which can resist high temperature to 280 ℃.
The advantage of Kevlar ironer belt are wear resistance, acid and alkali resistance, high strength and high tensile strength, non-deformation, long service life, etc.
Width: 4" (98mm) wide,
Weight : 700g/m² density
Lenght : 100m/roll or make ready belts as request.
ItemNo.
|
Ironer belt type
|
Weight/m2
|
Working temperature
|
Width
|
Length
|
Type of machine
|
Other called
|
L-021
|
100%Nomex ironer belt
|
1200gsm(4mm)
|
240º C
|
customzied any widht ,normal width100mm 150mm 200mm 300mm 330mm
|
30m/roll, or ready belt
|
oil heating ironer
|
Drying ironing belts |
500gsm(2mm)
|
Max210º C
|
L-022
|
50%Nomex 50%polyester ironer belt |
1500gsm
(5-5.5mm) |
Below
220º C |
30m/roll， or ready belt
|
Gas or electricity heating ironer
|
L-023
|
Chicago ironer nomex belt
|
600gsm
|
Around 200º C
|
75mm 150mm, 200mm
|
100m/roll，or ready belt
|
Chicago band machine,Speed Queen, etc.
|
L-024
|
Woven polyester ironer belt
|
1600gsm
|
Below
160º C
|
65mm,75mm, 85mm 90mm, 150mm, 200mm
|
100m/roll，or ready belt
|
Steam heating /Chinese machine |
| L-025 |
Aramid / kevlar woven ironer belt |
|
240 º C to 280 º C |
customzied width, normal 4" (98mm) |
100m / roll |
|
|
